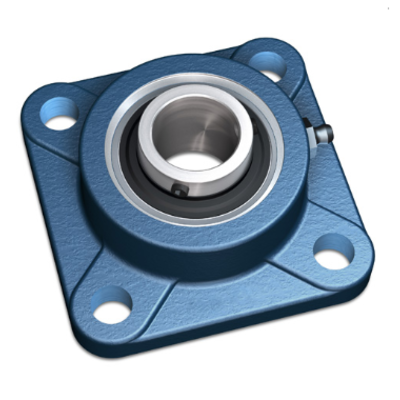

FY40 TF SKF 4 Bolt Square Flange Self Lube Unit

FY 40 TF
Square flanged ball bearing unit with set screw locking, cast iron housing, ISO
These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective
Housing # FY 508 M
Bearing # YAR 208-2F

Alternative Part Numbers :
SF40
UCF208

Technical Data Sheet https://www.bearings-online.co.uk/uploads/tinymce/FY40TF SKF.pdf
